Thermal simulation 1
Section of floor heating and cooling panel.

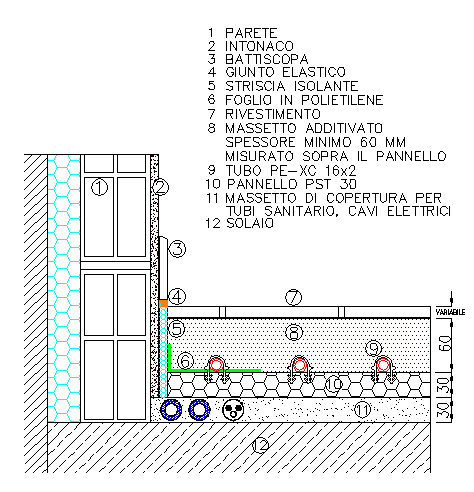

Section of the panel under floor and plan other pipes as hydrics, electrical and ventilation.
Section of floor and cooling panel.

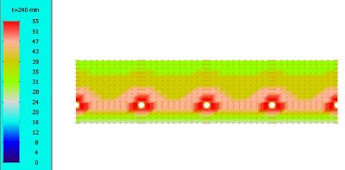

Distribution of the temperature inside the panel with PeX-C pipe under normal concrete. Maximum flow temperature 55°C.
Thermal simulation 2

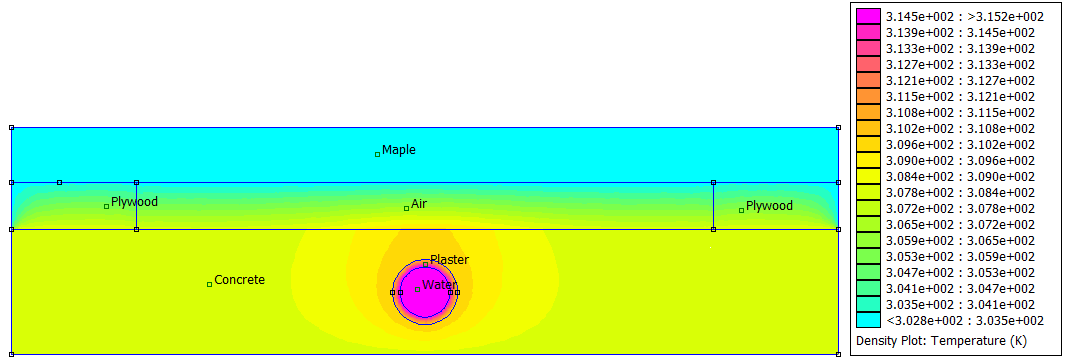

Thermal simulation for heating plant for a public building where abouve is present a wood floor in Maple material.The flow tempertaure is 45°C and the maximum surface floor tempertaure is 28°C.Under the floor is present a radiant sistem with PEX-C pipes and the polystirene support with a normal concrete.
This simulation was created with a Femm 4.2 software.
